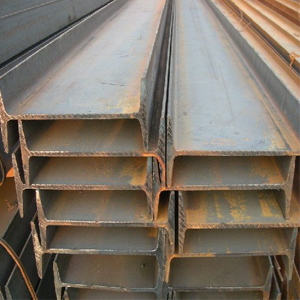

M.S. I-BEAM

“I-BEAM” (also known as W -beam, for “wide flange” or double T esp. in polish and German) are beam with on I- or H- shaped cross section.

The horizontal elements are flanges, while the vertical element is the web.

A beam is a line structural that Carries load primarily in bending. One of the most common types of steel beam is the i-beam or wide flange beam a visibly sagging beam, though structure safe , is unsightly and to be avoided .

Beam are characterized by their profile (the shape of their cross-ms_i_beamsection).Beam provide economical floor and roof systems is applications requiring long clear spans and lighter weight systems.

These Products are Available

  • Sizes: 65 x 125 mm up to 200 x 600 mm
  • And Above size on requirement to customers
  • Foreign Pakistan or Imported
  • Length : 3 meter to 12 meter approx

Approximate Measurements

MS. I Beam

Size

Weight Kgs

In Per Feet

5” x 2-1/2”

2.500

6″ x 3″

3.000

8″ x 4″ x 1/4″

4.000

8″ x 4″ x 3/8″

8.000

10″ x 5″

12.500

12″ x 5″

15.000

14″ x 5-1/2″

22.000

16″ x 6″

27.000

18″ x 6-1/2″

34.000

24” x 8”
